THE REVOLUTION OF AN ULTRA-EFFICIENT TECHNOLOGY - The Turbomiser

The Turbomiser from Cooltherm is the most efficient chiller of its type on the market today: thanks to the use of Turbocor compressors, it is able to reduce energy costs by up to 50% compared with traditional units that use screw or reciprocating compressors. Turbomiser chiller has won several awards, including CIBSE, the most prestigious award for technology with low environmental impact.

In addition to ultra-efficient performance, Turbomiser improves comfort and productivity levels in buildings thanks to its innovative design and continuous monitoring. And, with its frictionless magnetic bearings, service and maintenance costs are significantly reduced.



The Turbomiser chiller is based on a combination of technologies designed to reduce energy consumption, minimise or avoid leaks, reduce refrigerant charge and ensure reliable operation and deliver quiet running:

  • inverter-controlled magnetic bearing compressors whose output can be precisely matched to load;
  • micro-channel aluminium condensers, which reduce refrigerant charge while increasing the effectiveness of heat exchange;
  • flooded evaporators, which ensure optimum heat transfer between refrigerant and water;
  • the use of a pumping system of the refrigerant, which significantly increases thermodynamic efficiency throughout the entire operative range of the unit;
  • inverter driven condenser fans to match performance to demand and reduce energy consumption;
  • a sophisticated chiller control system which integrates with that of the on-board integral compressor control to optimise performance of the system as a whole.

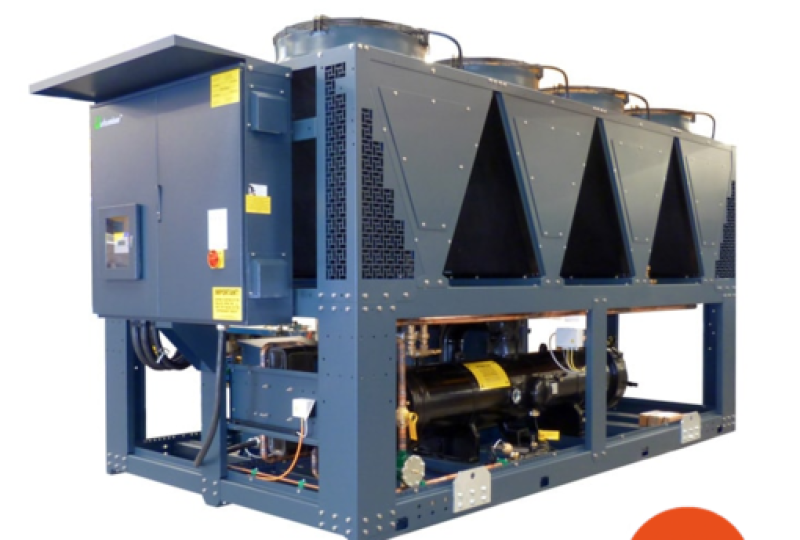

TMA

Air cooled chiller with Turbocor centrifugal compressors and axial fans for outdoor installation

TMA

TMA CM

Air cooled chiller with centrifugal compressors, axial fans and cylindrical condensers for outdoor installation

TMA CM

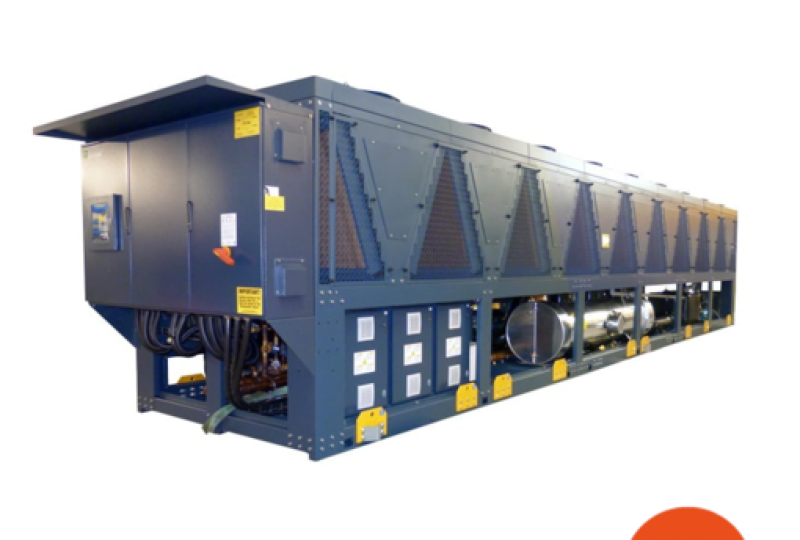

TMA ES

Air cooled chiller with Turbocor centrifugal compressors, axial fans and Evaporative System for outdoor installation

TMA ES

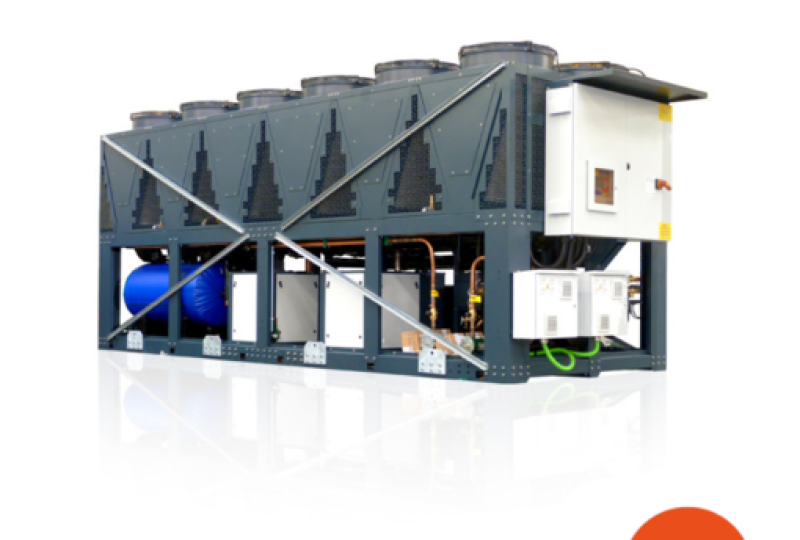

TMA FC

Air cooled chiller with Turbocor centrifugal compressors, axial fans and Free Cooling system for outdoor installation

TMA FC

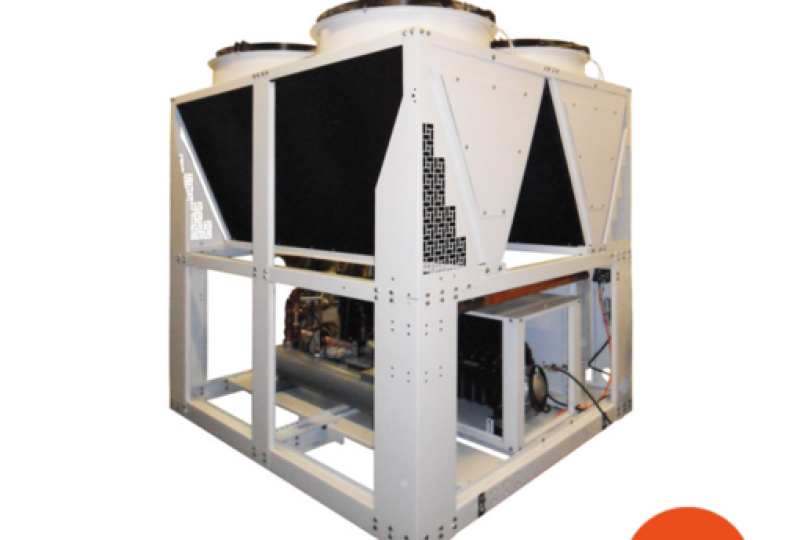

TSA

Condensing unit with Turbocor centrifugal compressors, air condensation and axial fans for outdoor installation

TSA

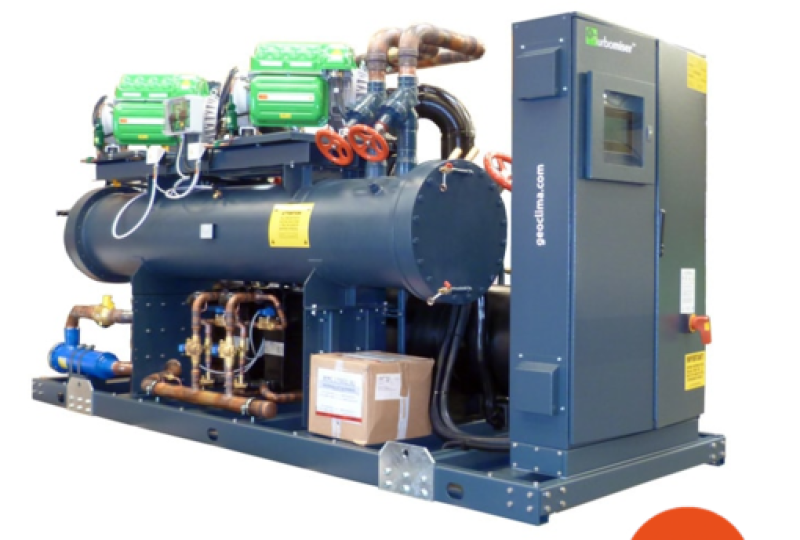

TMH

Water cooled chiller with Turbocor centrifugal compressors for indoor installation

TMH

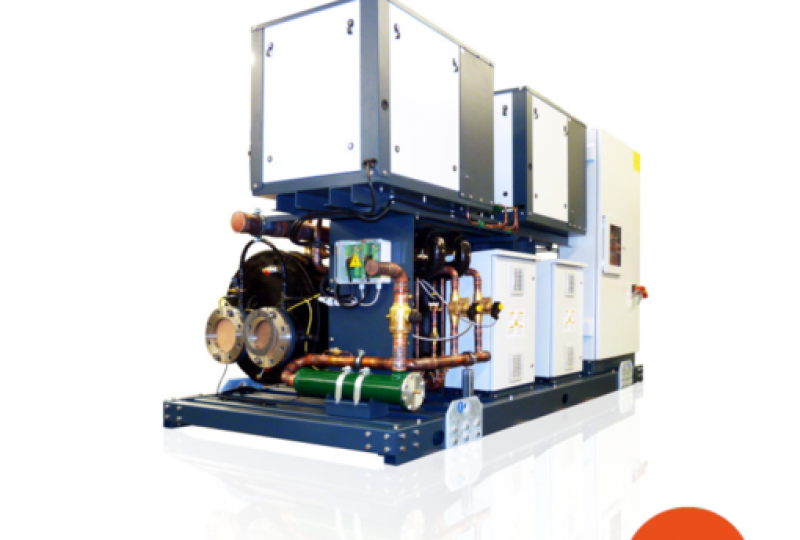

TSE

Condenserless water chiller with Turbocor centrifugal compressors to be connected with a remote condenser (RCE) for indoor installation

TSE

RCE

Remote condenser with axial fans for condenserless chillers

RCE

THE REVOLUTION OF AN ULTRA-EFFICIENT TECHNOLOGY - The Turbomiser

Benefits for the Turbomiser

Outstanding energy efficiency reduces operating budgets and helps shrink a facility’s carbon footprint, thanks to annual energy usage 30% to 50% less than conventional screw or reciprocating compressors chillers. Exceptional Energy Efficiency Ratios (EER) and Seasonal Energy Efficiency Ratio (SEER) are assured.

REDUCED ENERGY CONSUMPTION

REDUCED REFRIGERANT LEAKAGE

Benefits for the Turbomiser

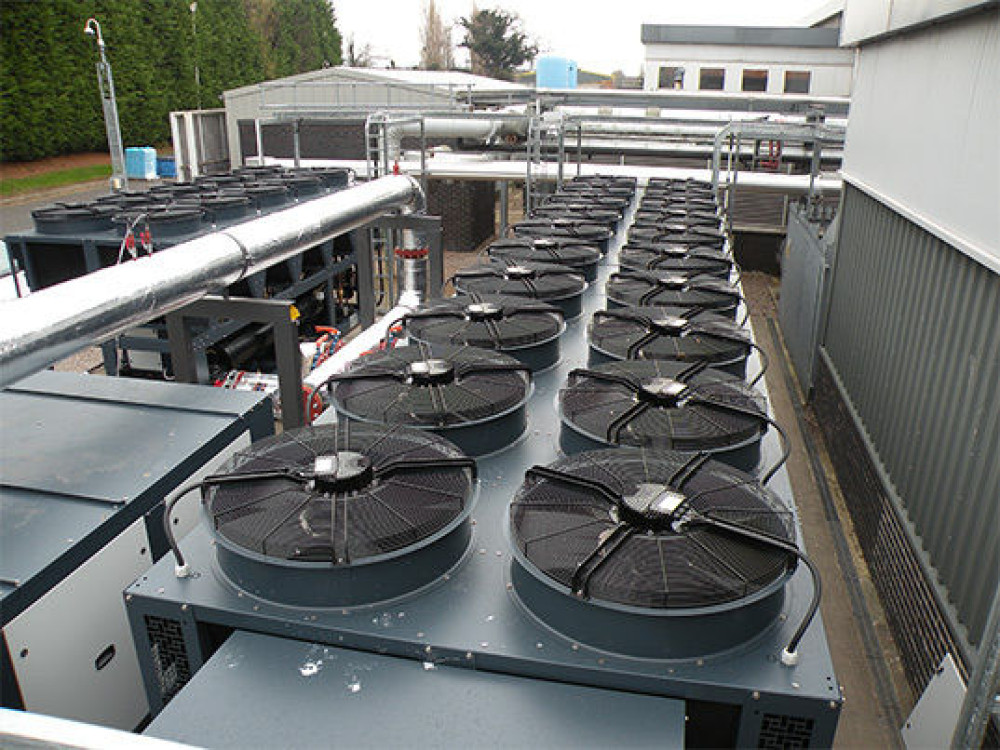

Refrigerant leaks are useless, costly and entirely avoidable. They are a consequence of poor design and/or maintenance of plant. The Turbomiser is designed to minimise or avoid leaks altogether, through reducing the number of components and joints in the system.

Benefits for the Turbomiser

Noise is a growing issue, particularly with the introduction of air conditioning to buildings in built-up and residential areas. The Turbomiser addresses this through exceptionally quiet operation, down to 67dB at 5 metres. Due to its design, the Turbomiser chiller is also virtually vibration free: there is no need for anti-vibration mountings or special supports.

VERY QUIET OPERATION
